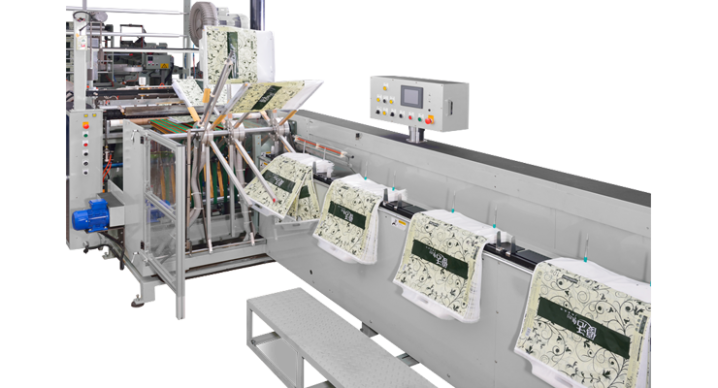

Fully Automatic Side-Sealed Diaper Bag Making Machine With Wickter
Introduction
-
ModelLY-1250EDW
LY-1250EDW is a specialized European-style diaper bag making machine. It equips with 5 sets of servo motors to allow efficient, stable and precise production. 6-vacuum arms collecting system significantly save labor work and increase production efficiency.
Features
- Fully automatic side sealing type diaper bag making machine with wicketer.
- 2 sets of servo motors for feeding system.
- 2 sets of servo motors for punch position and indexing station alignment.
- 1 set of servo motor for indexing station position control.
- 6 or 8 vacuum arms depends on size of bag.
- Human-machine interface for easy setting.
- Pneumatic type auto-lifter and EPC at unwind stand.
- Continuous hot-air sealing system handle film.
- Precision mold for handle punch.
SPECIFICATION
Model | LY-1250EDW | ||
---|---|---|---|
Bag width | 300-730mm | ||
Bag Length | 350-750mm | ||
Heater capacity | 2.5KW x 2 | ||
Power required | 29 KW | ||
Output | up to 60 bags/min | ||
Machine dimensions | L | W | H |
14.35M | 5.85M | 2.55M | |
Machine weight | 8500 KG | ||
Air compressor (Not included) | 10 HP |
Notes:due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.
Why Choose LY-1250EDW?
The LY-1250EDW fully automatic side-sealed diaper bag making machine is designed to optimize production efficiency. With 5 sets of servo motors and an advanced vacuum arm system, it ensures stable and efficient operation while minimizing labor intervention.
