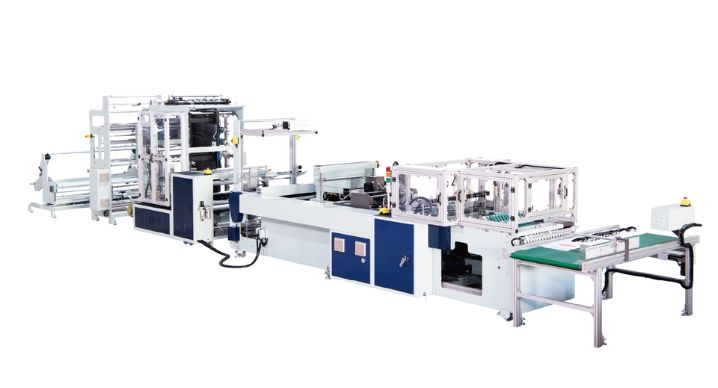

Fully Automatic Side Seal Zipper-Loop Handle Bag Making Machine
Introduction
-
ModelLY-800LCZP
-
Features
- Computerized servo-driven feeding system with one set photocell for printed bag.
- Human-machine interface for easy setting.
- Heating type of zipper lamination unit and synchronized tension system to ensure zipper sealing quality.
- High quality continuous sealing unit for top sealing.
- Precision and high speed loop handle unit.
- Optional hot handle punch for die - cut zipper bag.
SPECIFICATION
| Model | LY-800LCZP | |||
|---|---|---|---|---|
| Width |
270-650mm ( Loop) 100-800mm ( Zipper) |
|||
| Length |
270-650mm ( Loop) 270-650mm ( Zipper) |
|||
| Production speed |
Up to 100mm ( Loop) Up to 80mm ( Zipper) |
|||
| Thickness of film (mm) |
0.04-0.10 ( Loop) 0.04-0.08 ( Zipper) |
|||
| Power Required | 12kw | |||
| Machine dimensions | L | W | H | |
| 10.7M | 2.5M | 2.35M | ||
| Machine Weight | 5500 Kg | |||
| Air compressor (Not included) | 10 HP | |||
Notes：due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.
